W685 Wall Mounted Dust Extractor

  • Quiet 1hp Induction Motor
  • Supplied with Wall Mounting Brackets

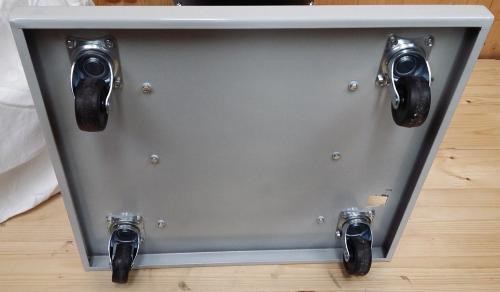

  • Supplied with Castors for Under Bench Floor Mounting
  • 5 Micron Filter Bag
  • Long Life All Steel Fan

If not having enough space is a problem in your workshop then this wall mounted extractor may well be the answer. When mounted on a wall the collection/filter bag hangs underneath and collects all the dust and chippings whilst taking up very little space.
Powerful enough for any bench machinery plus bandsaws and table saws.

As an alternative to wall mounting the unit can be used in the horizontal position, under a bench for instance, and is on castors for easy portability around the workshop.

Supplied with wall brackets, 4 castors, carrying handle, cable and plug.
Hose is sold separately, maximum recommended hose length is 3m.

Specification

Motor (induction) 750w, 240v
Flowrate (cubic metres per hour) 850m3/hour
Inlet diameter 100mm
Bag capacity 60 Litres
Dimensions (WxDxH) 380mm x 460mm x 1150mm
Weight 27kg
Rating Hobby
Warranty 1 Year
EAN 5060486040483

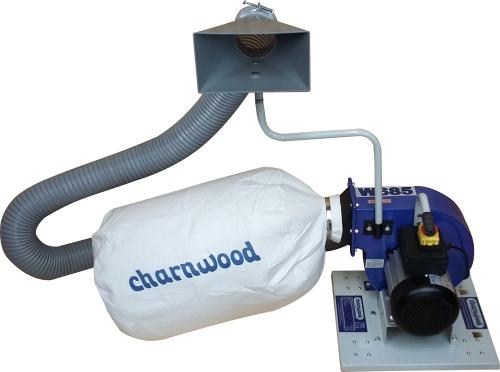

The optional Hose Kit provides a handy method of holding a dust hood in the desired position when working with a Lathe.

We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the hose to smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.

£149.62 ....(£149.62 incl VAT)

Price includes UK mainland delivery on orders over £100 plus VAT

SKU: W685 Category:
Contact us for more info on W685 Wall Mounted Dust Extractor Price includes UK mainland delivery on orders over £100 plus VAT. Use the livechat below or email us for more info.

Carriage for the UK Mainland is FREE on all tool orders over £100 plus VAT  - typically arriving within a few days.  NEXT DAY DELIVERY options are also available. Also great prices for European and Worldwide shipping on all tools.
