£711.55 ....(£853.86 incl VAT)
The biggest dust extractor in our professional range with two large collection bags to run for longer times between emptying.
The high volume of air moved means this unit is capable of extracting from up to three machines simultaneously or through a longer hose system than smaller machines. Hose systems can include branches off to different dust producing machines around the workshop. The maximum recommended hose length between extractor and collection point is 10 metres. There is no limit to the total length of hose used in the network but any unused branches must be capped off or closed using a gate when not in use.
We now fit as standard super fine 2 micron filters making the unit suitable even for MDF dust.
Supplied with a steel fan, 3 way intlet, four rubber wheels, NVR switch, quick release metal straps on all bags, 1.6m power cable (No plug).
A 16 amp, 240v electric supply is required to run this machine. We recommend using a 16amp plug.
Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
|Motor (Induction)||2200w (3hp)|
|Airflow (Without Bag)||3450 m3/hour (2600CFM)|
|Max. Static Pressure||336mmAq (13.2 InH2O)|
|Impellor Diameter||330mm (12″)|

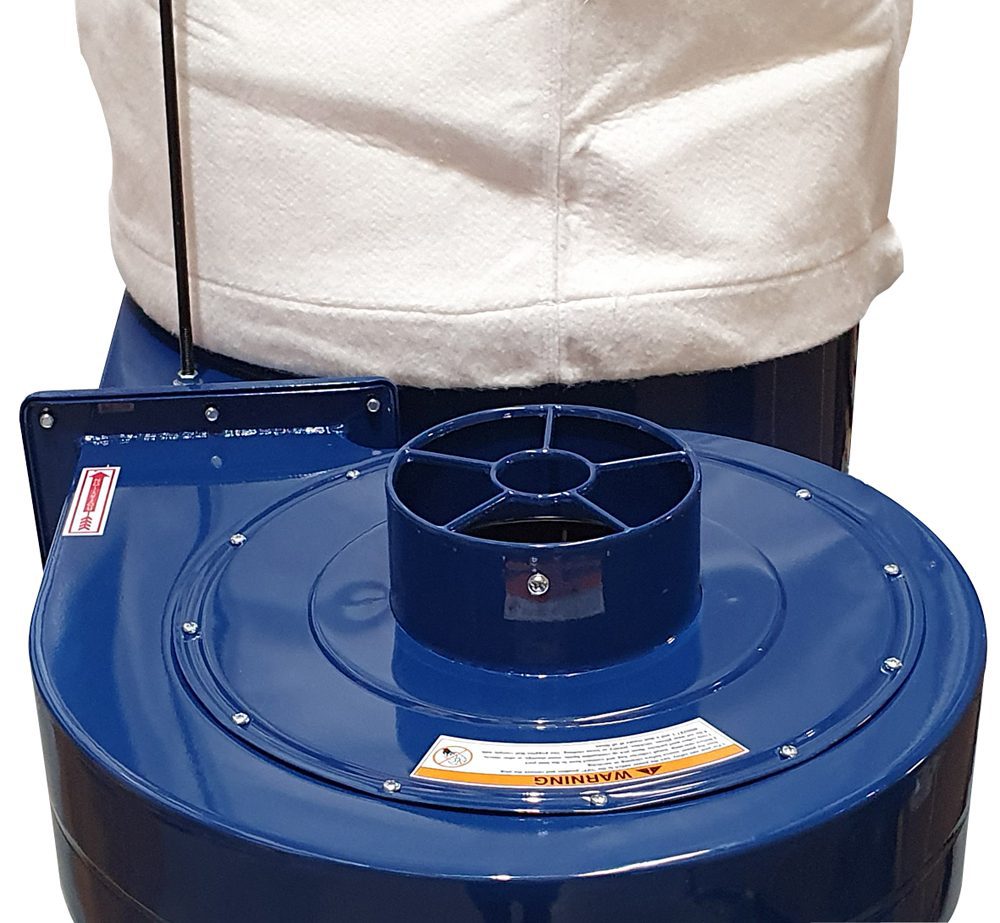

|Inlet Diameters||1 x 150mm or 3 x 100m|
|Bag Cpacity||2 x 148 Litres|
|Noise Level (@3m)||85dB|
|Dimensions (WxDxH)||1560mm x 550mm x 1920mm|
NB 2 x CF2024 required for this machine to upgrade to 0.5 micron filter
We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.
