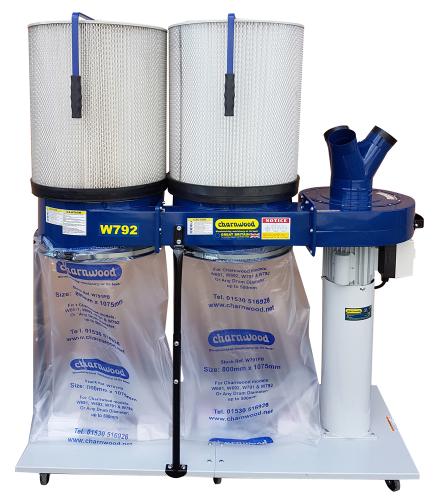

W792/3CF Dust Extractor 2200w, 415v With 1 mic Filter Cartridges

£955.70 ....(£1,146.84 incl VAT)

Package Deal – Save £30

Package includes W792/3 Extractor & 2 x CF2024 Cartridge Filters

The biggest dust extractor in our professional range with two large collection bags to run for longer times between emptying.

  • Quiet Induction Motor
  • Up to 8 hours Continual Running
  • Super Fine 1 mircron Filter
  • Transparent Collection Bag
  • Wheels Included For Portability

The high volume of air moved means this unit is capable of extracting from up to three machines simultaneously or through a longer hose system than smaller machines. Hose systems can include branches off to different dust producing machines around the workshop. The maximum recommended hose length between extractor and collection point is 10 metres. There is no limit to the total length of hose used in the network but any unused branches must be capped off or closed using a gate when not in use.

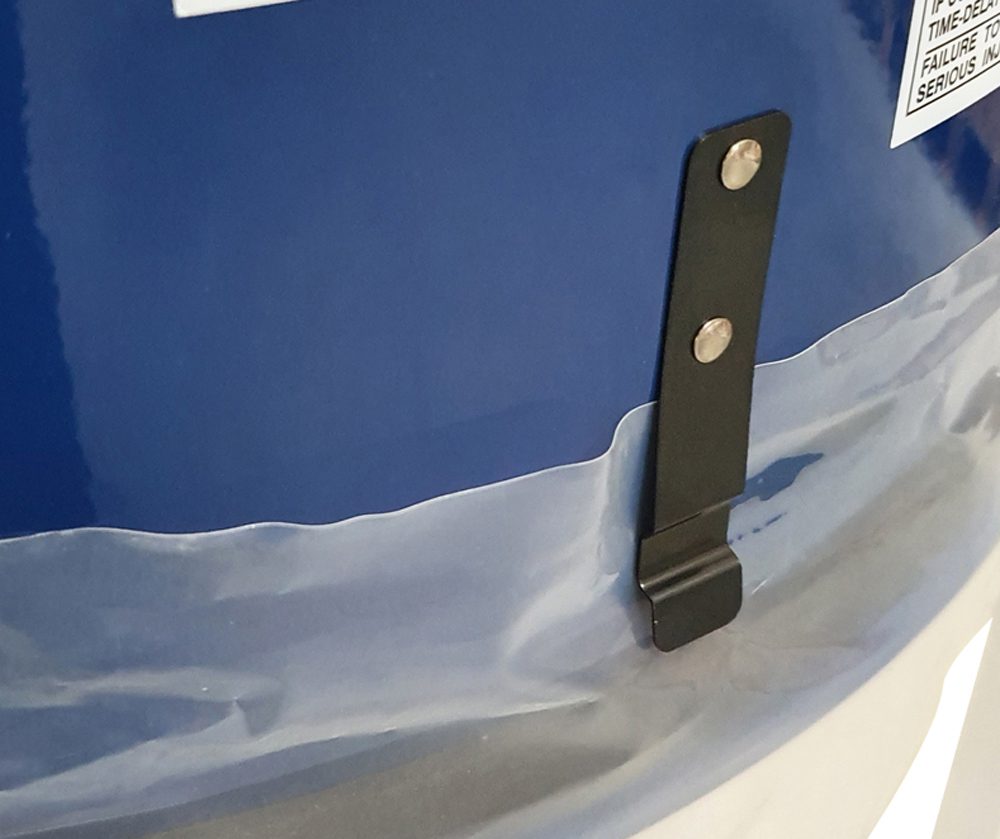

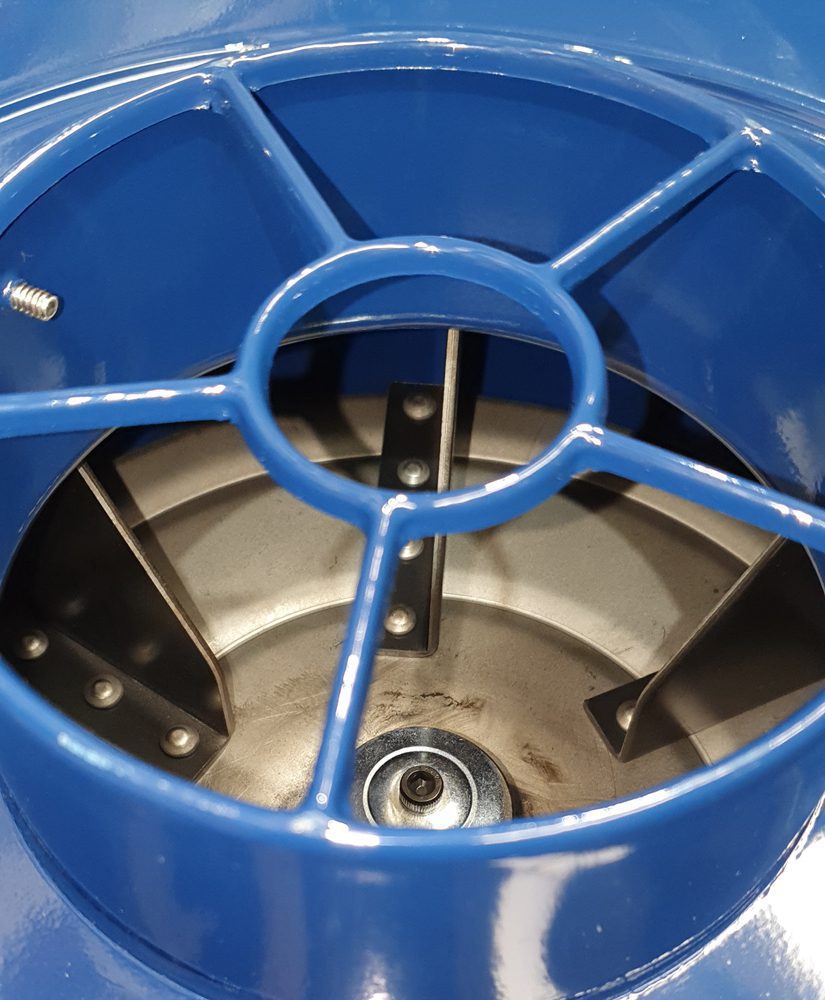

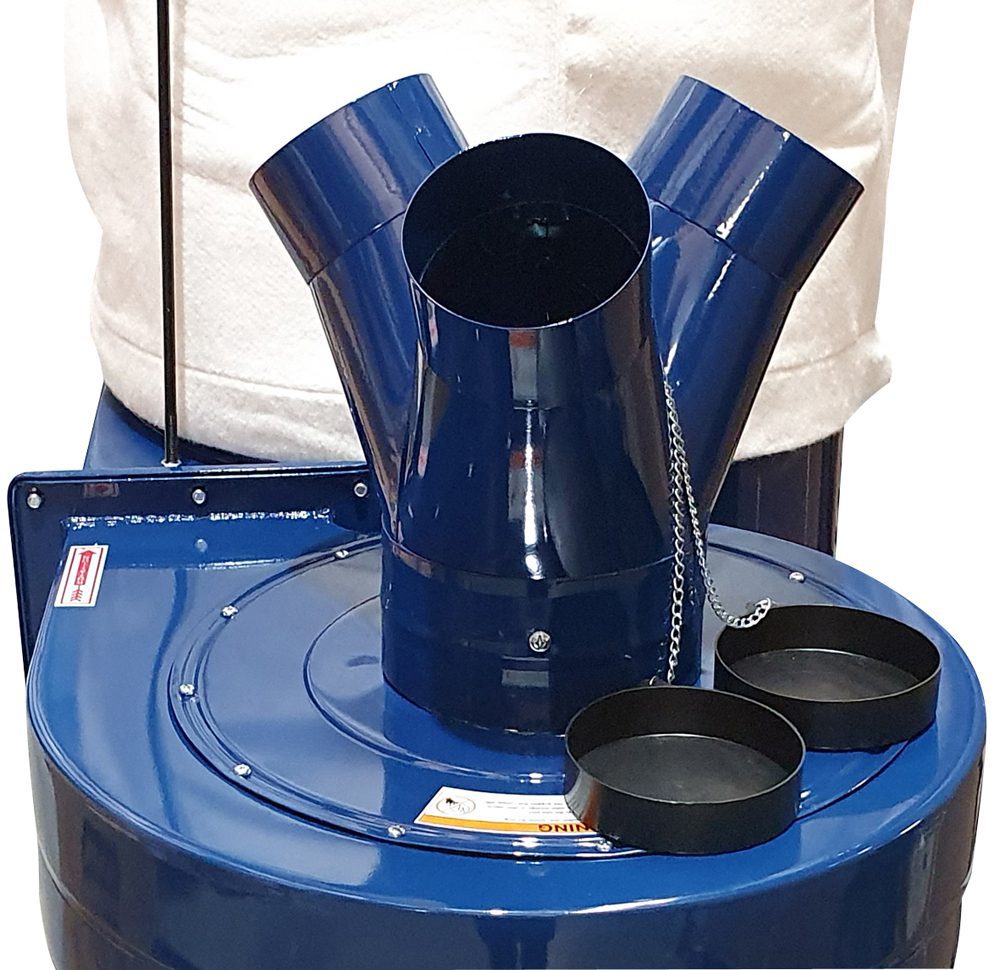

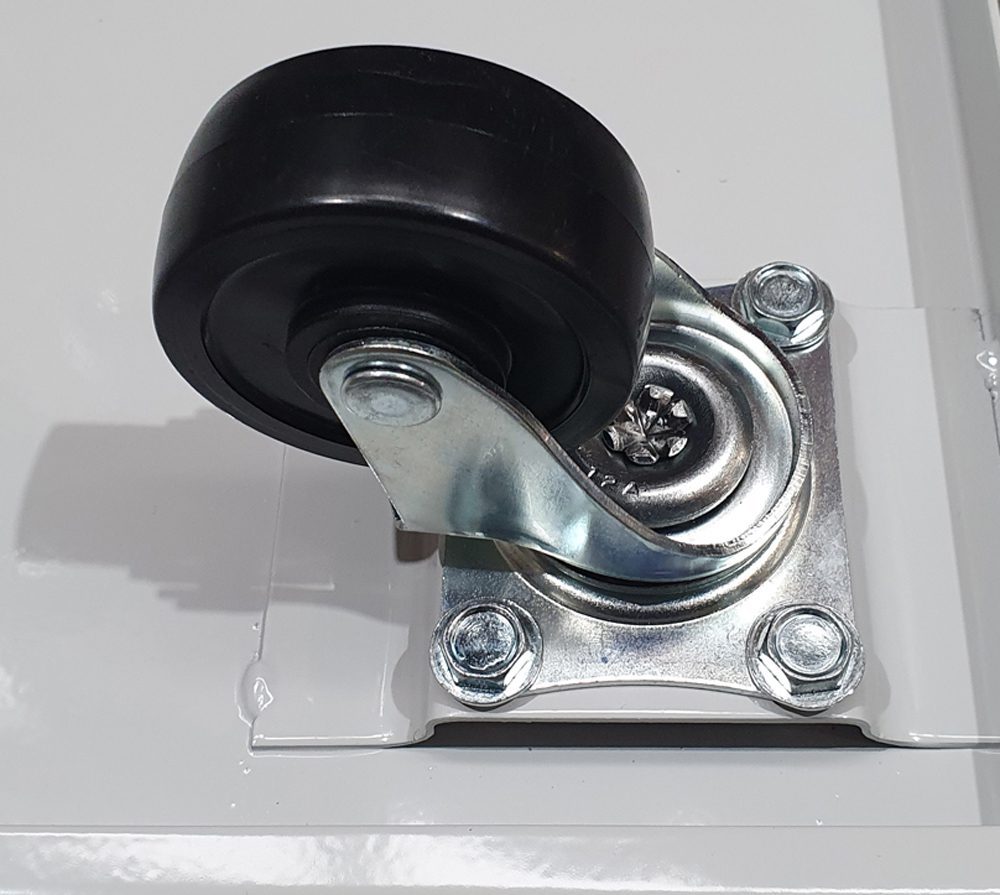

Supplied with a steel fan, 3 way outlet, four rubber wheels,  NVR switch, quick release metal straps on all bags and 1.6m power cable (No plug).

Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.

A 415v, 3 phase electric supply is required for this machine.

Specification

Motor (Induction) 2200w (3hp)
Voltage 415v, 3phase
Airflow (Without Bag) 3450 m3/hour (2600CFM)
Max. Static Pressure 336mmAq (13.2 InH2O)
Impellor Diameter 330mm (12″)

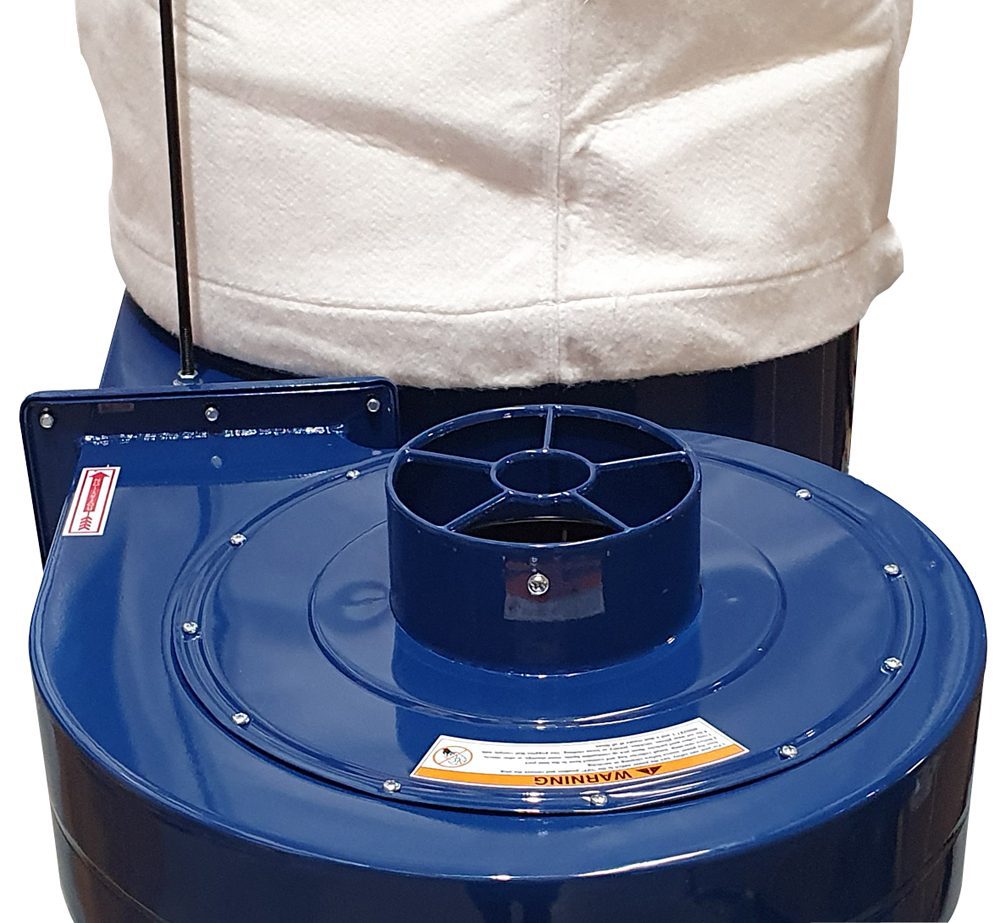

Inlet Diameters 1 x 150mm or 3 x 100m
Bag Cpacity 2 x 148 Litres
Filtration 2 microns
Noise Level (@3m) 85dB
Dimensions (WxDxH) 1560mm x 550mm x 1920mm
Weight 75 Kg
Rating Industrial
Warranty 1 Year

We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.

W792 Owners Manual

SKU: W792/3CF Category:

Additional information

Weight 75 kg
