£497.80 ....(£597.36 incl VAT)

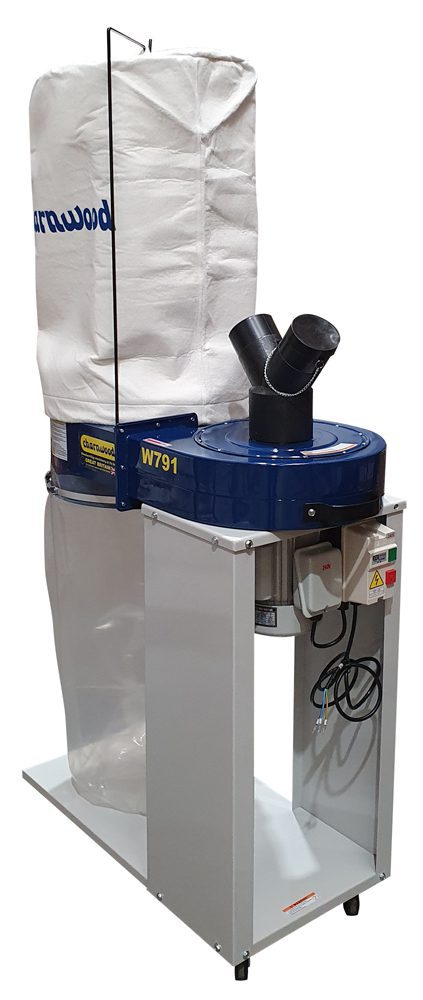

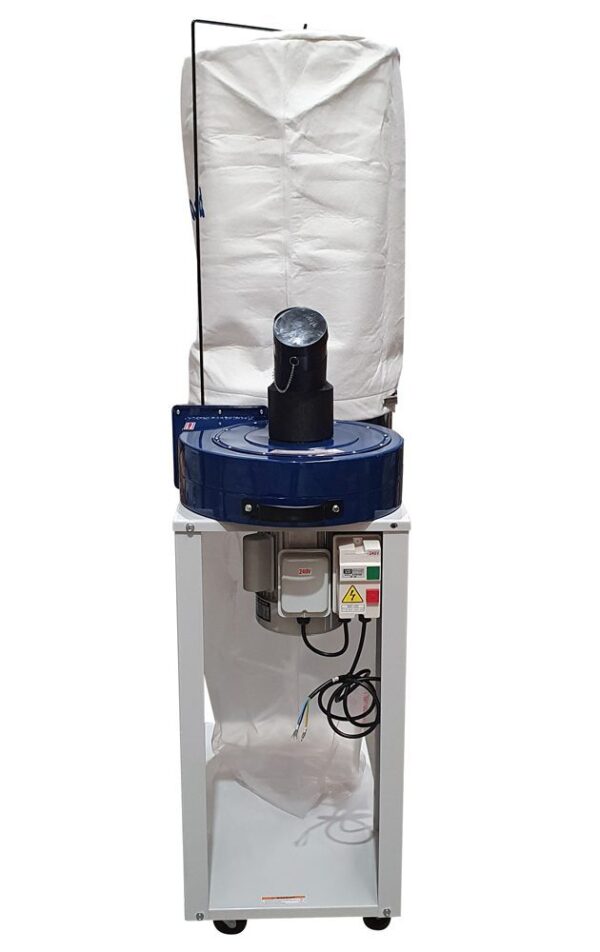

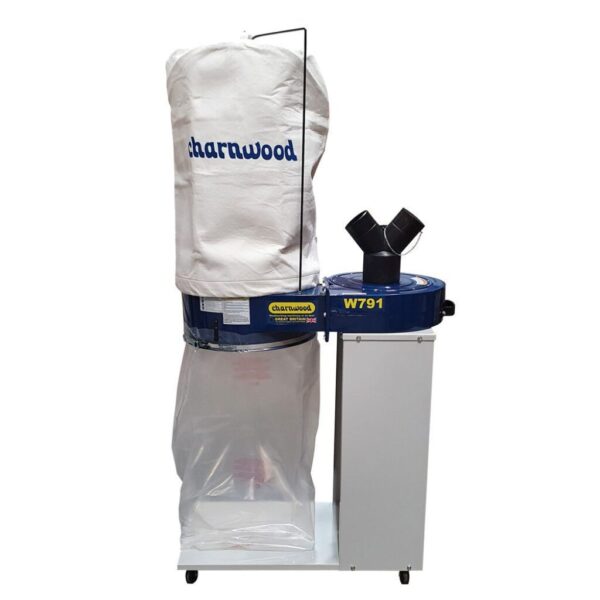

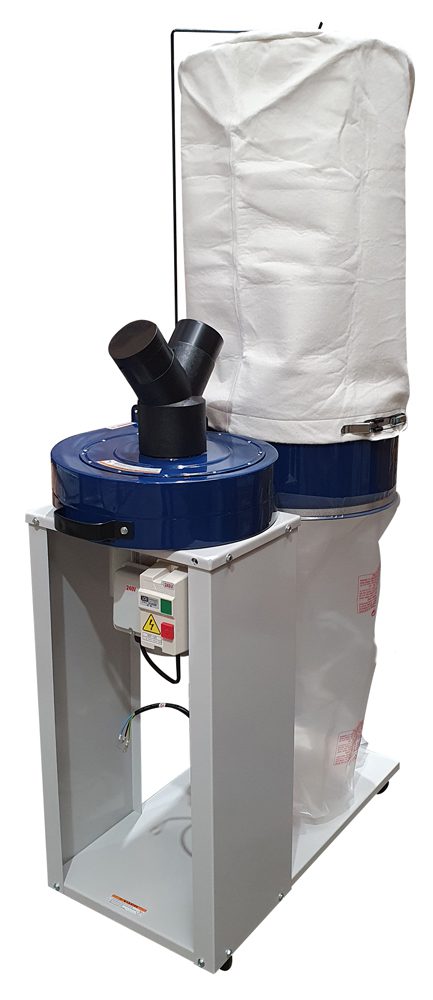

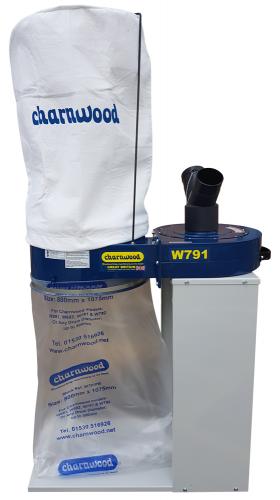

A powerful professional twin bag dust extractor with ample flow rate to extract from two machines at the same time.
These larger collectors are ideal for locations where the extractor will be cited a long way from the dust source. The higher flowrate also allows a small system of branch lines to be fitted around the workshop to allow extraction from a variety of machines. Maximum recommended total hose length is 7 metres. We now fit as standard a super fine 2 micron filter making the unit suitable even for MDF dust. Maximum recommended total hose length is 7 metres.
Supplied with transparent collection bag, durable steel fan, NVR switch, rubber wheels, quick release metal straps, Y branch and 1.6m power cable (No plug).
Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
A 415v, 3 phase electric supply is required for this machine.
|Motor (Induction)||1500w (2hp)|
|Voltage||415v, 3 phase|
|Airflow (Without Bag)||2130 m3/hour (1600CFM)|
|Max. Static Pressure||183mmAq (7.2 InH2O)|

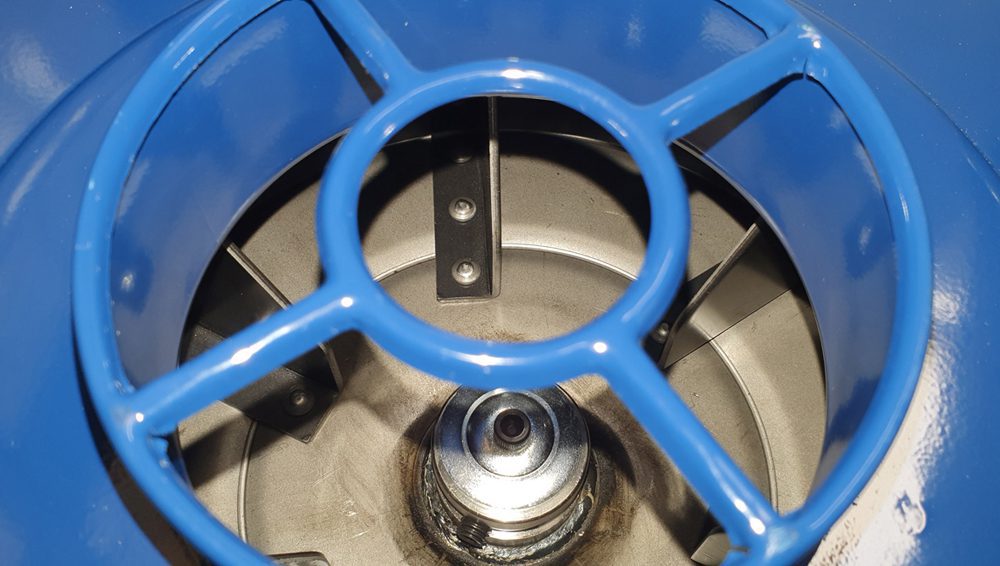

|Impellor Size||305mm (12″)|
|Inlet Dimensions||1 x 124mm or 2 x 100m|
|Bag Capacity||148 Litres|
|Noise Level (@3m)||81dB|
|Dimensions (WxDxH)||880mm x 550mm x 1920mm|
We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.
