TORMEK US-430 UNIVERSAL SUPPORT EXTENDED

Why US-430 Extended Universal Support?

• Longer support for sharpening long tools.
• Taller support for sharpening tall tools.
• Easy to mount– just insert into the precision mounts.
• Fits the Tormek T-8, Tormek T-7, Tormek T-4, Tormek T-3 and older models.

For longer and taller tools

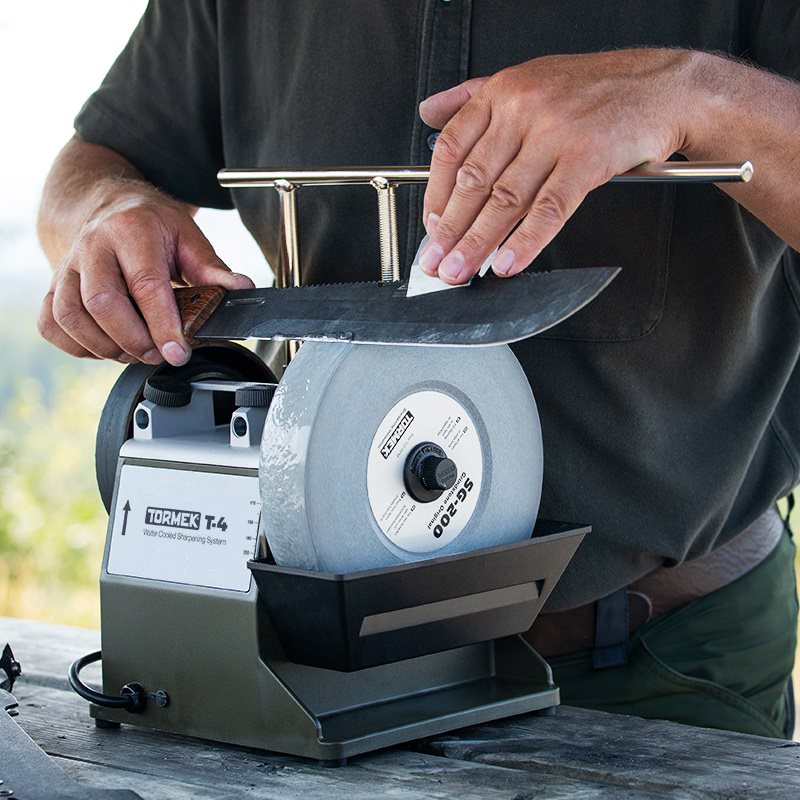

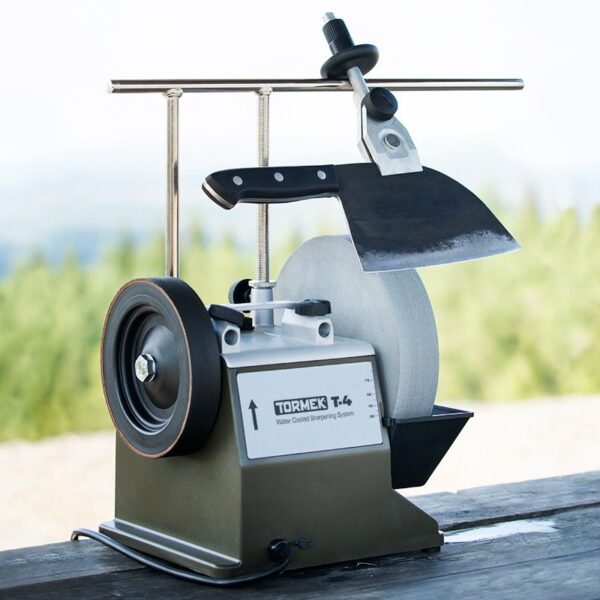

The US-430 Extended Universal Support is designed for anyone sharpening particularly long or tall tools. Sometimes your regular universal support just isn’t enough, either in length or in height. You might be sharpening a tall meat cleaver or a long knife, for example.

The SE-77 Square Edge Jig stop function, that prevents the tool slipping off the grinding wheel, doesn’t work with the US-430 Extended Universal Support as it is too long for that.

Fits your Tormek

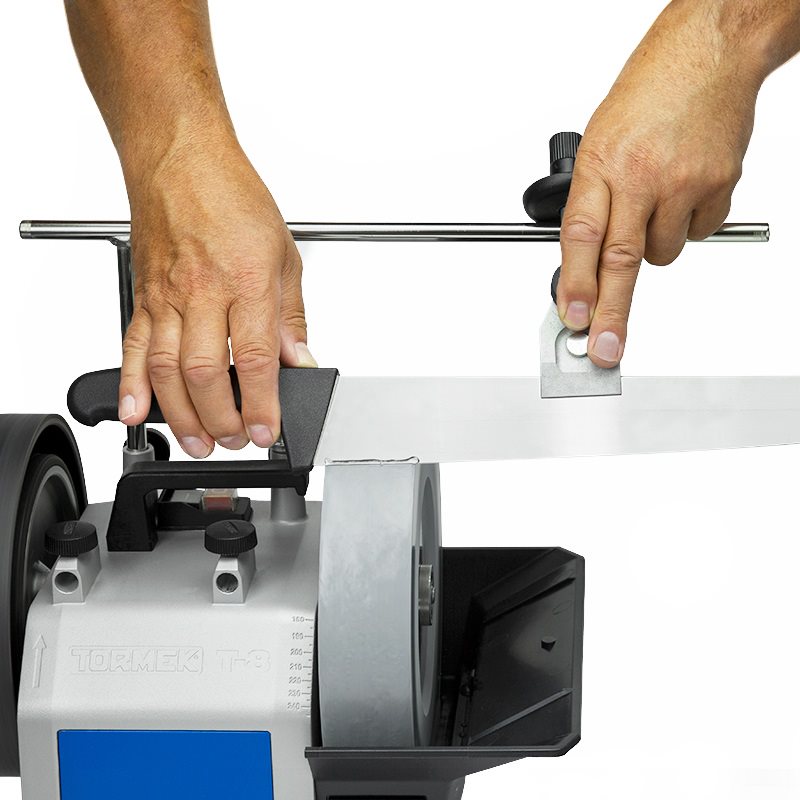

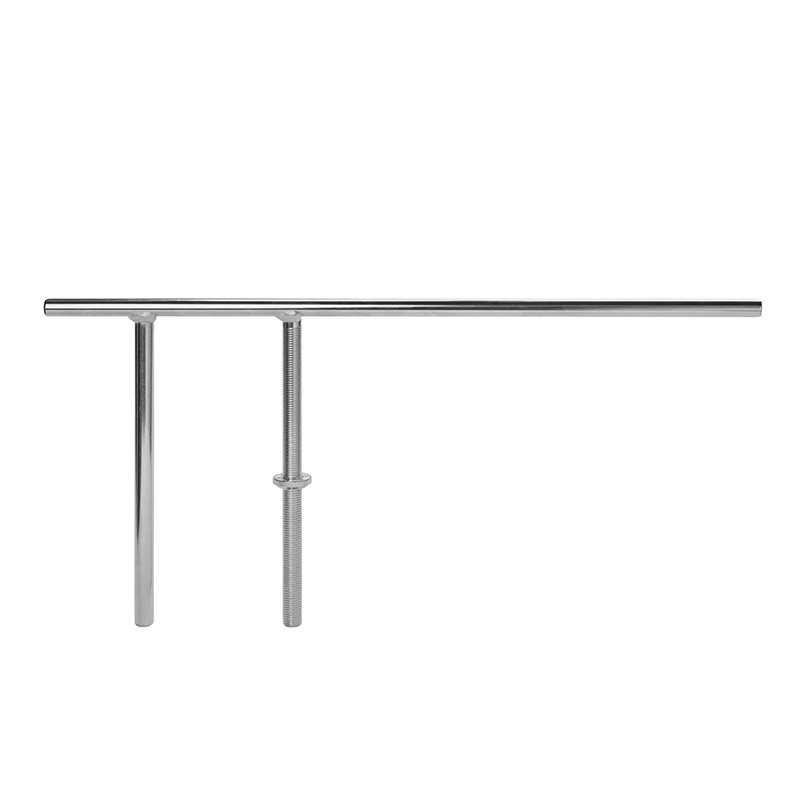

The US-430 Extended Universal Support fits the Tormek T-8, Tormek T-7, Tormek T-4, Tormek T-3 and older models. The universal support is 436 mm (17 1/8″) long and 212 mm (8 3/8″) high. You can position it vertically for sharpening into the edge (edge leading), horizontally for sharpening away from the edge (edge trailing), or horizontally for honing with jigs. Like our other universal supports, the US-430 Extended Universal Support also works with the MB-102 Multi Base for sharpening on the side of diamond grinding wheels.

Specs and details

Weight
Shipping weight 0.87 kg (1.92 lb)

Color
Silver

Material
Nickel-plated steel

Warranty
2-year warranty

Patents
To see all patents, please visit tormek.com/patents

Included in the box
The US-430 Extended Universal Support comes fully assembled and ready to use.
