Packaging dimensions
Width: 325 mm (12¾”)
Depth: 235 mm (9¼”)
Height: 257 mm (10 1/8″)
Machine dimensions
Width: 240 mm (9 7/16″)
Depth: 205 mm (8 1/16″)
Height: 260 mm (10¼”)
Weight
Inc. packaging: 9.8 kg (21.6 lbs)
Machine only: 8 kg (17.6 lbs)
Color
Blue/gray
Cord length
1.7 m (5′ 7″)
Material
Precision-cast zinc top, powder-coated
Impact-resistant blue ABS plastic

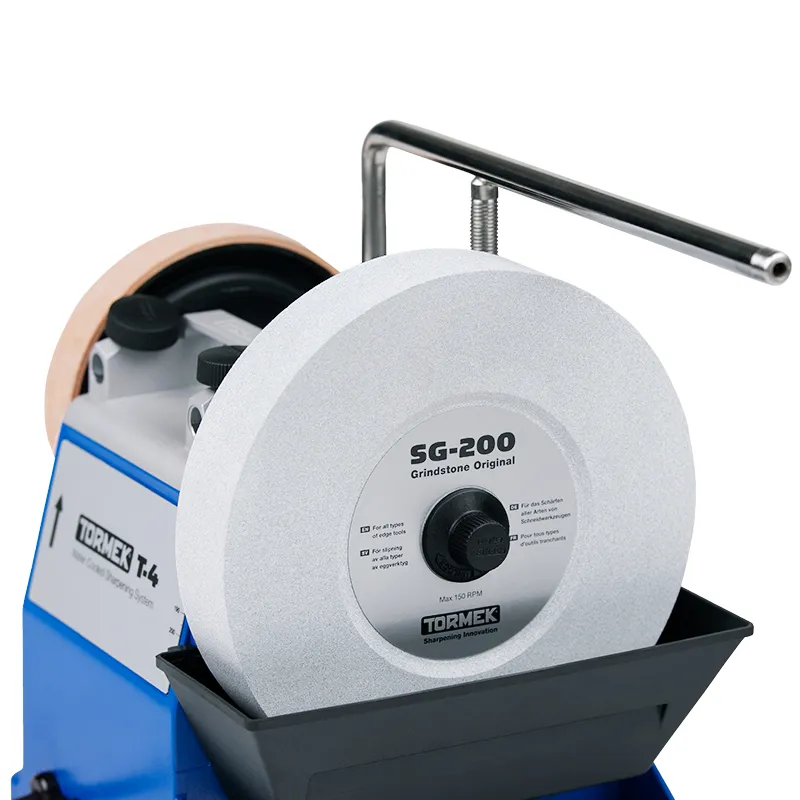

Grinding wheel
SG-200 Original Grindstone
Aluminum oxide
Ø 200 × 40 mm (7.87 × 1.57″)

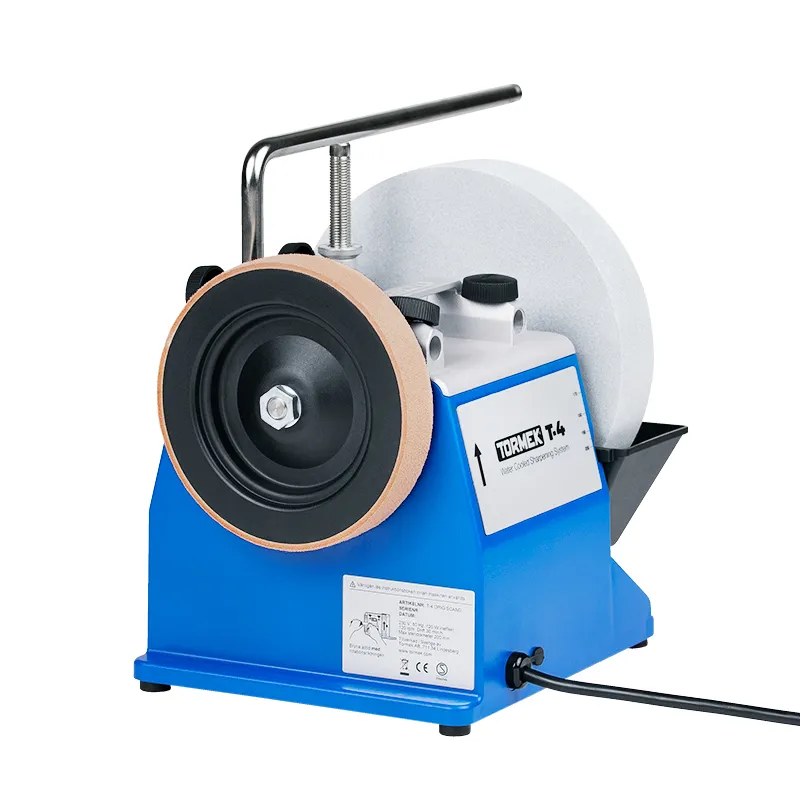

Honing wheel
LA-145 Leather Honing Wheel
Cowhide from Tärnsjö Garveri, ABS plastic.
Ø 145 × 26 mm (5.71 × 1.02″)
Drive system
Unique drive system with RKX18 rubber
Self-adjusting for load
Main shaft
MSK-200 Stainless Steel Shaft with EzyLock
Performance
120 rpm
Torque 8.4 Nm
Motor
Industrial motor, single phase, AC
120 W (input), 100-115 V / 220-240 V, 50-60 Hz
Continuous operation
Maintenance-free
Quiet running, 54 dB
10 000 hours of operating time
Warranty
8-year warranty*, 5 years + 3 years when you register at tormek.com
* The warranty for the Tormek T-4 Original is 2 years when used for commercial, industrial, or educational purposes
Documents
Parts breakdown T-4 ENpdf, 226.1 kB.
Material safety data sheet PA-70 ENpdf, 224.8 kB.
Material Safety Data Sheet – Oil for Honing Wheel ENpdf, 111.6 kB.
Included in the box

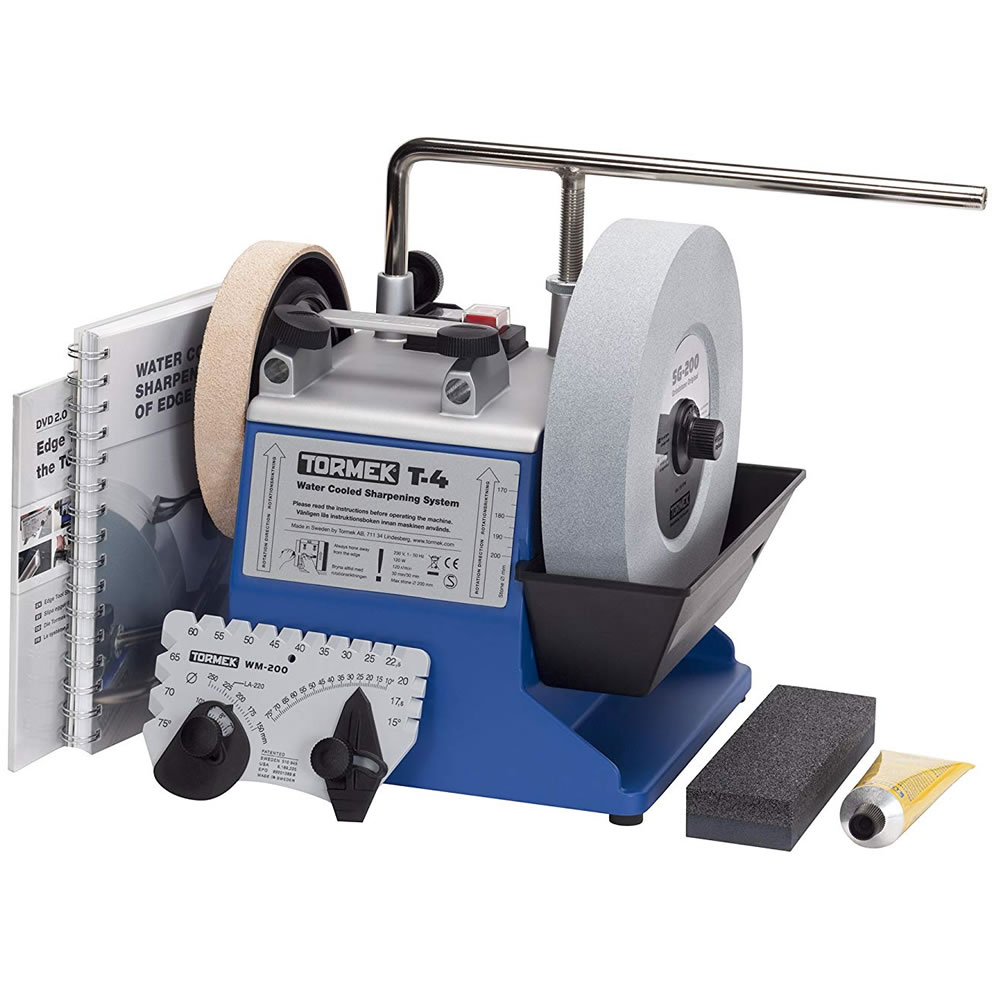

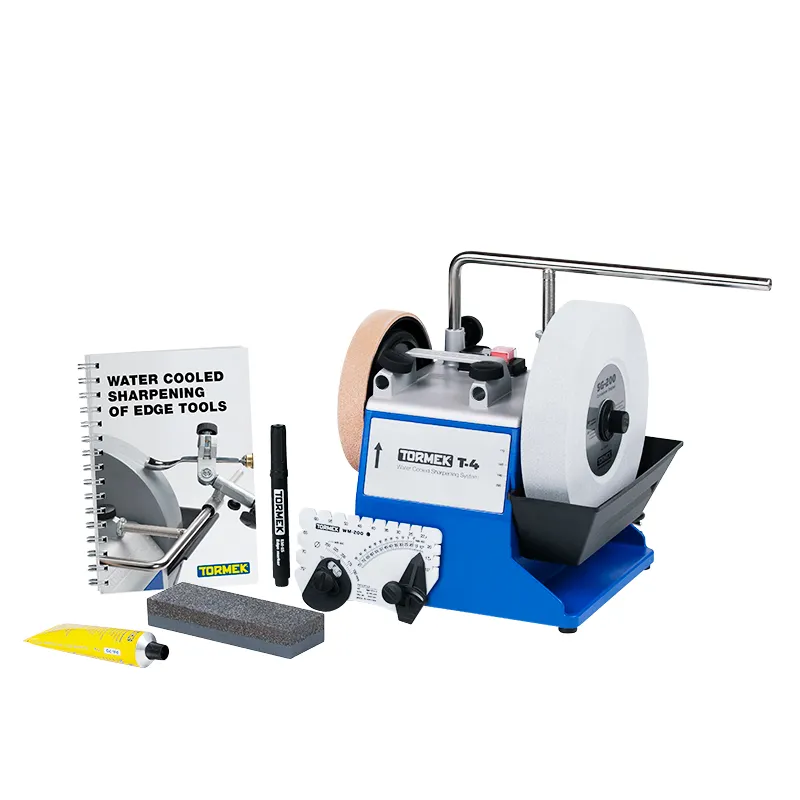

The Tormek T-4 Original comes with:
SG-200 Original Grindstone with adjustable sharpening properties,
LA-145 Leather Honing Wheel for deburring and polishing the bevel,
US-103 Universal Support for precision sharpening,
SP-650 Stone Grader to adjust the grit of your grindstone,
WM-200 AngleMaster to measure the sharpening angle,
PA-70 Honing Compound which is used on the leather honing wheel,
EM-15 Edge Marker for coloring the bevel when setting the sharpening angle,
Tube of light machine oil for impregnating the leather honing wheel,
HB-10 Tormek Handbook comes in different language versions depending on the market.
Complement your Tormek T-4 Original with a selection of jigs for the tools you’ll be sharpening (sold separately).
