Overview
Why the Tormek T-4 Bushcraft?
- Equipped with theKJ-45 Centering Knife Jig and AX-40 Axe Jig to keep your tools ready for the wilderness
- Compact water-cooled sharpening system in a stylish green color for all your edge tools
- Water-cooled sharpening with no risk of overheating the steel
- Exact replication – sharpen your tools with unbeatable precision
- Efficient grindstone with adjustable properties equivalent to 220 to 1000 grit
- Sturdy, cast zinc top with patented mounts for precise sharpening and full control
- Maintenance-free industrial motor (AC) ensures minimal speed loss even under heavy load
- Unique drive system with RKX18 rubber drive wheels
- Stainless steel shaft with composite EzyLock for easy replacement of grinding wheels
- 8-year warranty, 5 years + 3 years when you register online (for private use)

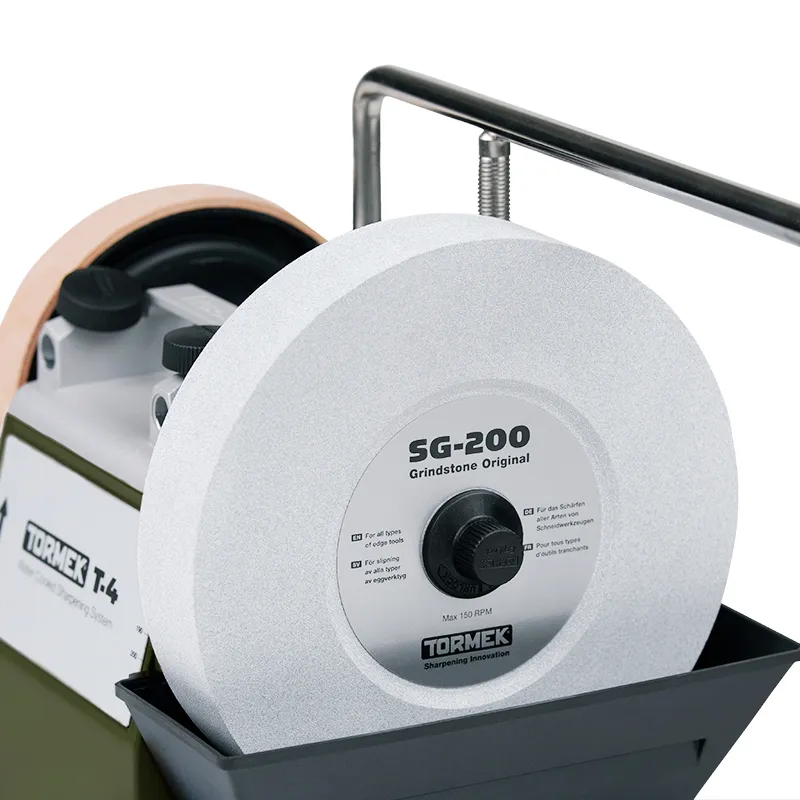

Grinding wheel for both fine and coarse sharpening

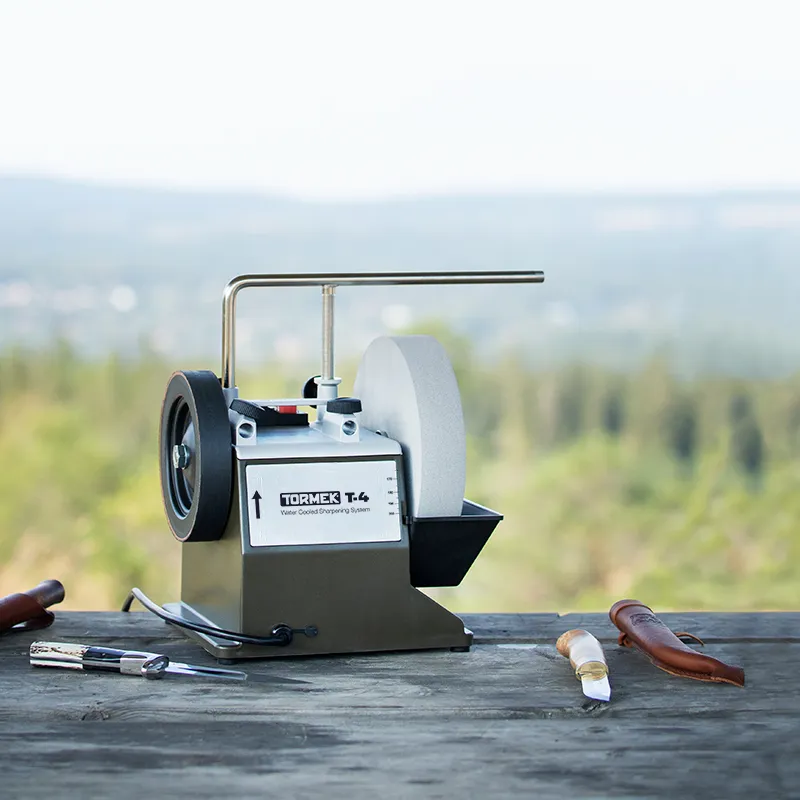

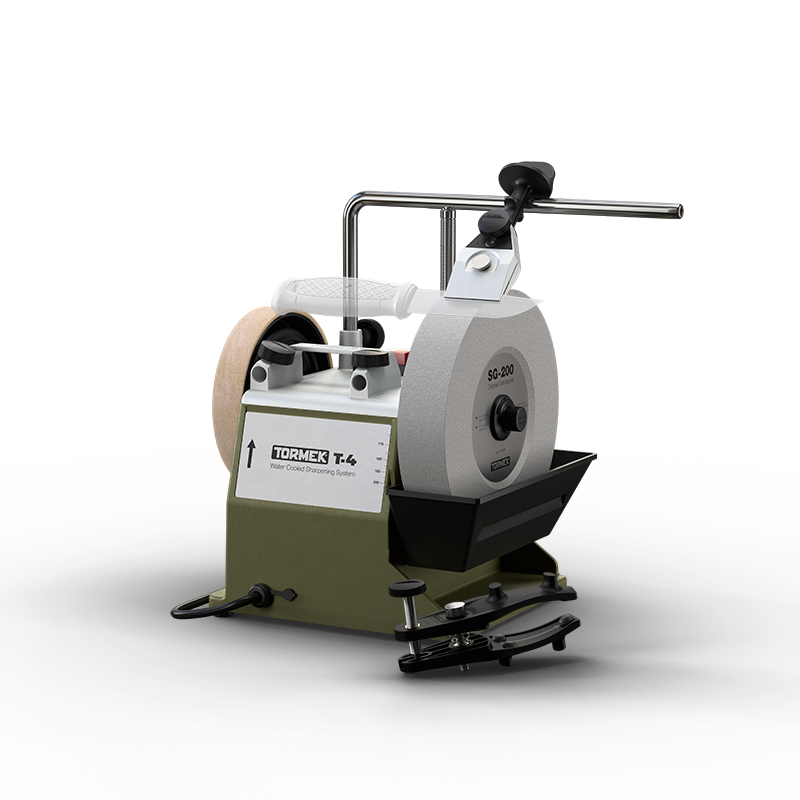

The Tormek T-4 Bushcraft allows you to sharpen a variety of outdoor knives, hunting knives, fishing knives and axes. This sharpening machine comes with Tormek’s SG-200 Original Grindstone, which provides a wide range of sharpening properties in a single grindstone. You can easily alternate between coarse sharpening at 220 grit and finer sharpening that gives a surface equivalent to 1000 grit. This allows you to restore very badly damaged tools and make them as good as new, but you can easily sharpen tools that are just blunted, too.
Finishing off your sharpening with the leather honing wheel polishes the bevel and removes the burr formed during sharpening. This gives your tool maximum sharpness and a polished edge that lasts.
Swedish-made quality machine

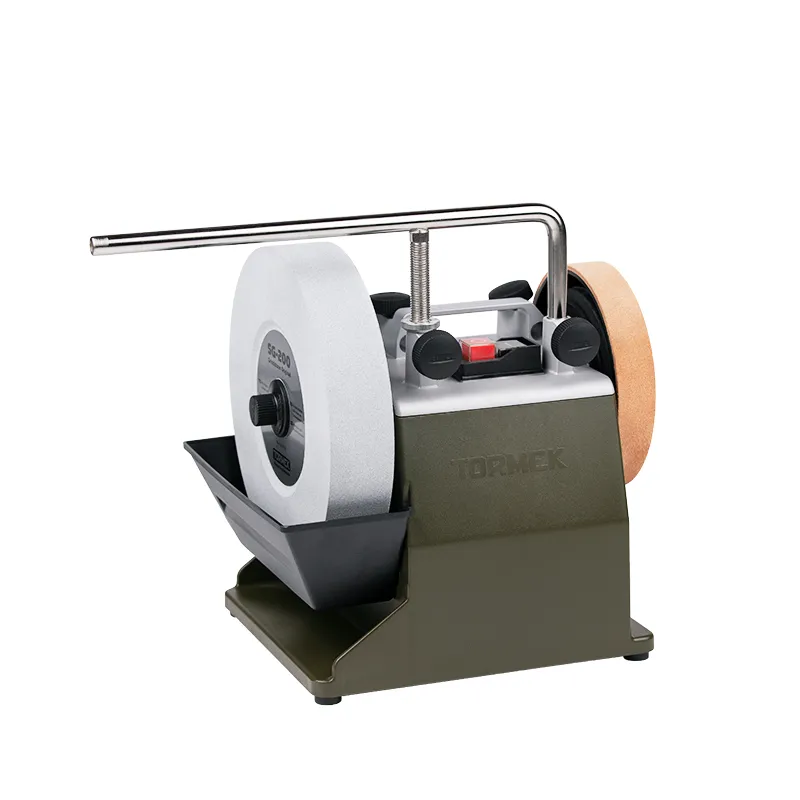

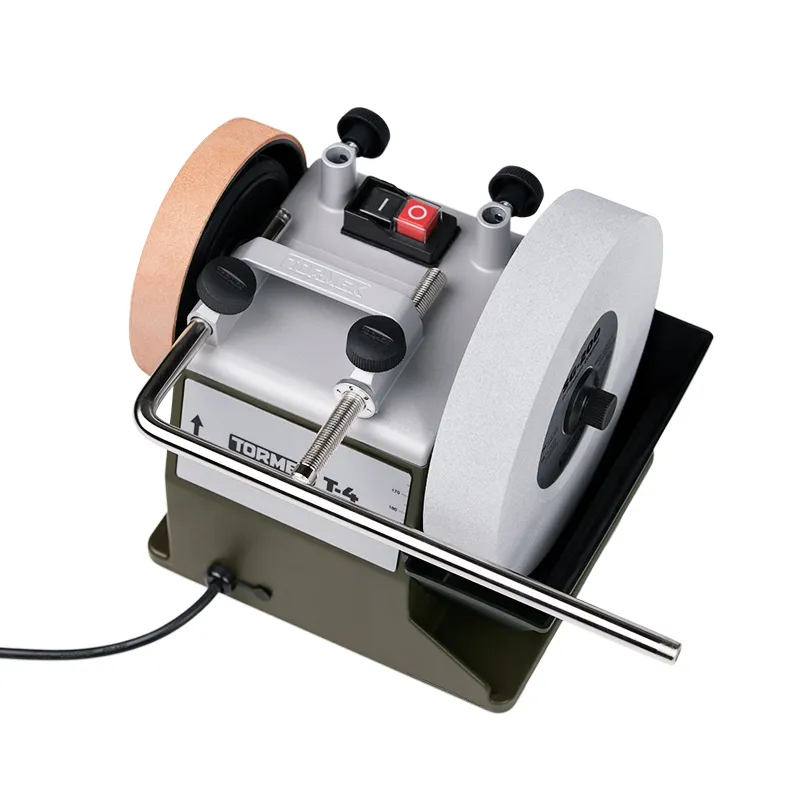

The Tormek T-4 Bushcraft has a fully cast zinc upper body that integrates the vital parts of the machine such as the motor, main shaft, handle and the precision mounts for the universal support. The base of the housing is made of impact-resistant green ABS plastic. All in all, this gives you a sturdy machine that can withstand pressure and offers unbeatable precision. The robust handle means you can easily move the machine when needed.
Sharpens all your tools
Tormek offers a set of jigs for different tools that can be purchased separately and used on the same system, depending on your needs. Chisels, drill bits, scissors and woodturning tools are all examples of other tools you can sharpen with the Tormek T-4 Bushcraft.
Specs and details
Packaging dimensions
Width: 325 mm (12¾”)
Depth: 235 mm (9¼”)
Height: 257 mm (10 1/8″)
Machine dimensions
Width: 240 mm (9 7/16″)
Depth: 205 mm (8 1/16″)
Height: 260 mm (10¼”)
Weight
Inc. packaging: 10,3 kg (22.6 lbs)
Machine only: 8 kg (17.6 lbs)
Color
Green/grey
Cord length
1.7 m (5′ 7″)
Housing
Precision-cast zinc top, powder-coated
Impact-resistant green ABS plastic
Grinding wheel
SG-200 Original Grindstone
Aluminum oxide
Ø 200 × 40 mm (7.87 × 1.57″)
Honing wheel
LA-145 Leather Honing Wheel
Cowhide from Tärnsjö Garveri, ABS plastic.
Ø 145 × 26 mm (5.71 × 1.02″)
Drive system
Unique drive system with RKX18 rubber
Self-adjusting for load
Main shaft
MSK-200 Stainless Steel Shaft with EzyLock
Performance
120 rpm
Torque 8.4 Nm
Motor
Industrial motor, single phase, AC
120 W (input), 100-115 V / 220-240 V, 50-60 Hz
Continuous operation
Maintenance-free
Quiet running, 54 dB
10 000 hours of operating time
Warranty
8-year warranty*, 5 years + 3 years when you register at tormek.com
* The warranty for the Tormek T-4 Original is 2 years when used for commercial, industrial, or educational purposes
Documents
Parts breakdown T-4 ENpdf, 226.1 kB.
Material safety data sheet PA-70 ENpdf, 224.8 kB.
Material Safety Data Sheet – Oil for Honing Wheel EN

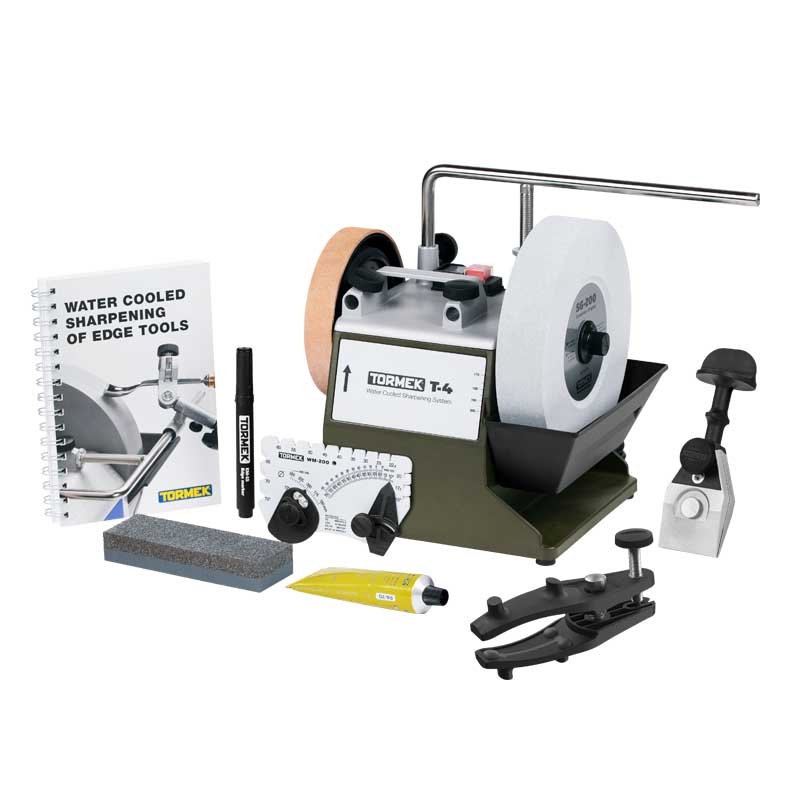

Included in the box
The Tormek T-4 Bushcraft comes with everything you need to sharpen your knives and axes for hunting, fishing and outdoor activities
KJ-45 Centering Knife Jig for sharpening all your hunting, fishing and outdoor knives

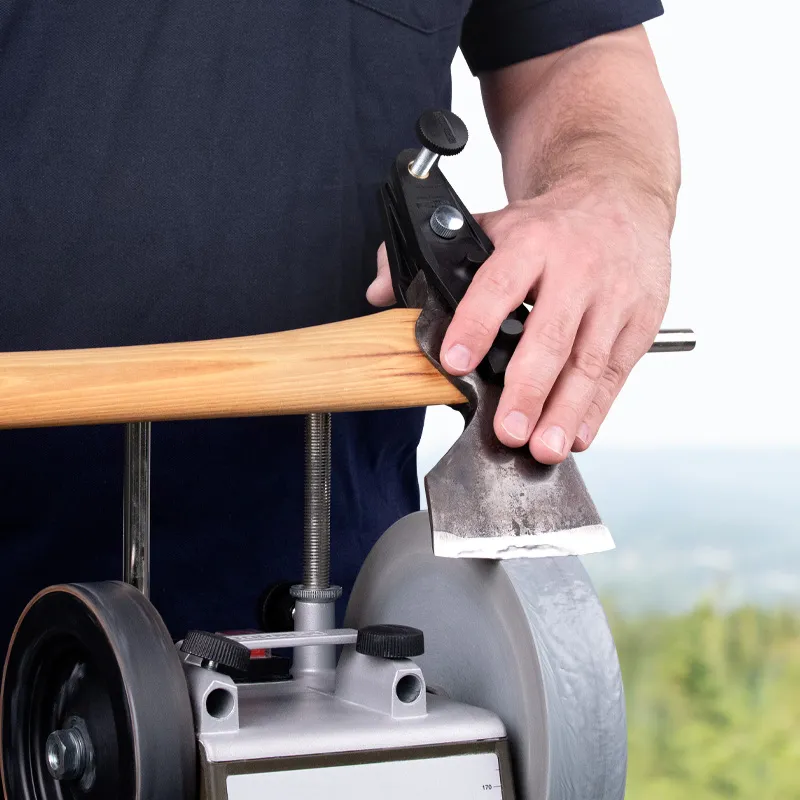

AX-40 Axe Jig so that you’ll always have a sharp axe with you
SG-200 Original Grindstone with adjustable sharpening properties
LA-145 Leather Honing Wheel for deburring and polishing the bevel
US-103 Universal Support for precision sharpening
The SP-650 Stone Grader, to adjust the grit of your grindstone

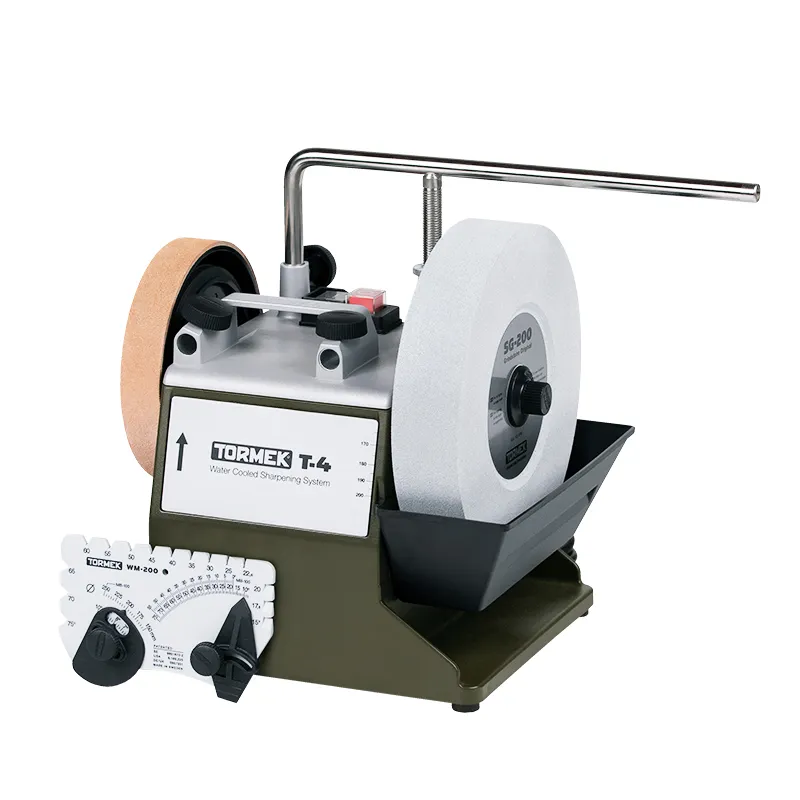

WM-200 AngleMaster to measure the existing bevel angle and set the sharpening angle
PA-70 Honing Compound used on the leather honing wheel
EM-15 Edge Marker for coloring the bevel when setting the sharpening angle
Tube of light machine oil for impregnating the leather honing wheel
HB-10 Tormek Handbook comes in different language versions depending on the market
Complement your Tormek T-4 Bushcraft with a selection of jigs for the other tools you’ll be sharpening (sold separately).
£444.00
