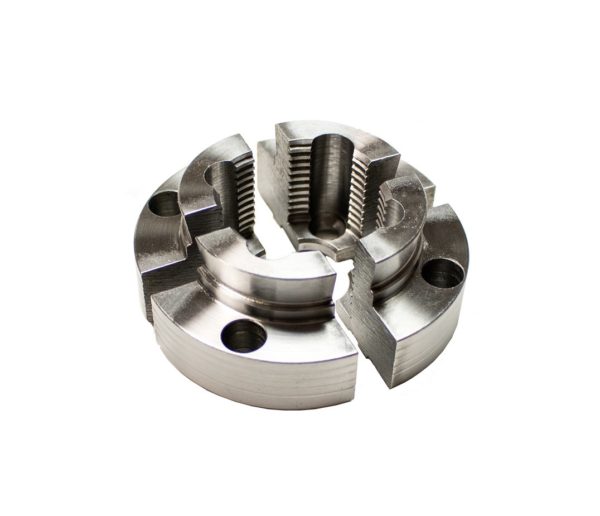

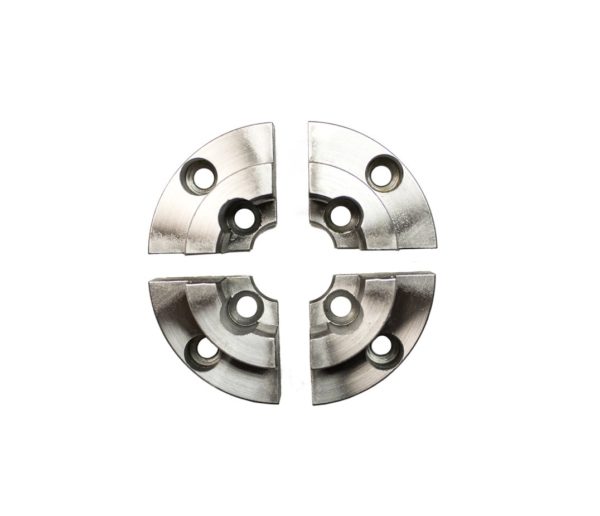

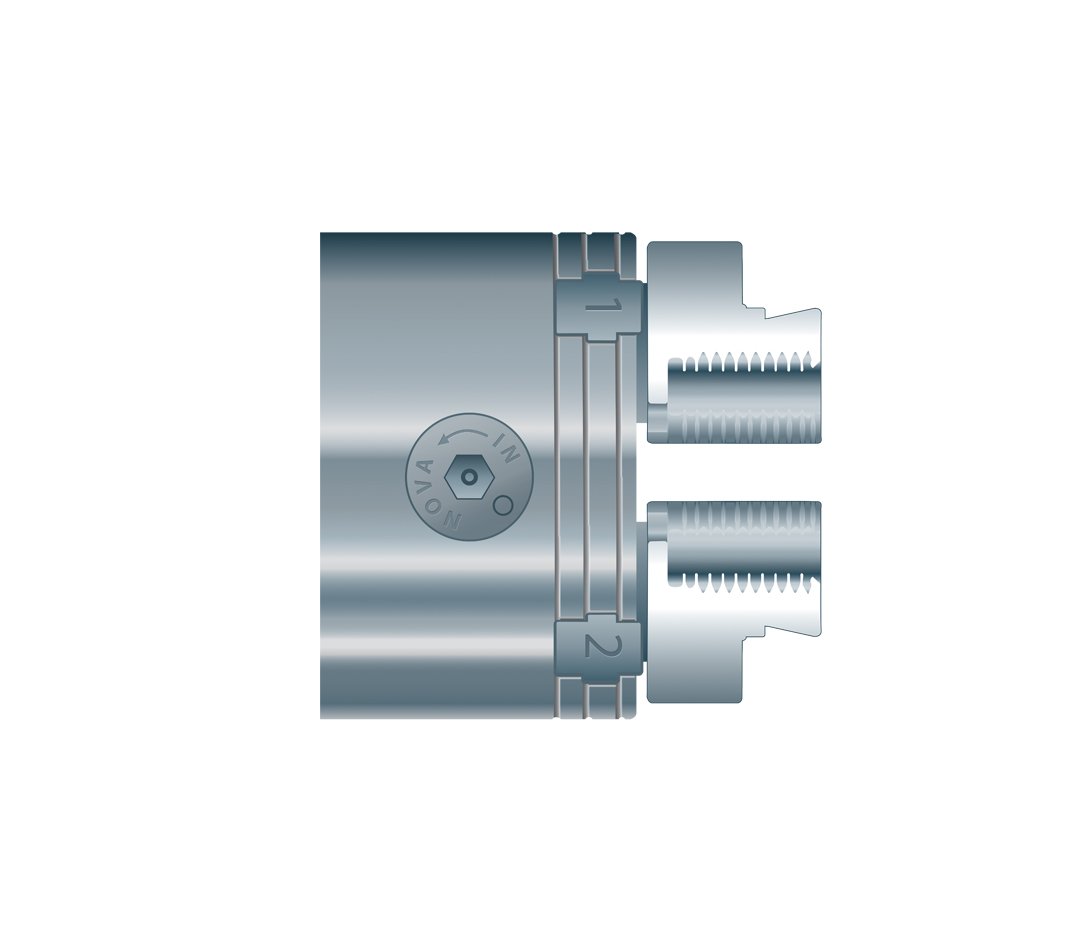

NOVA 35MM (1.375″) SPIGOT JAW SET (SKU JS-SP35)

For work where a long overhang is needed or hollowing into end grain, these 35mm Spigot Jaws provide superior gripping power.

• Special NOVA dovetail profile, designed to maximum strength and holding in wood turning, without crushing wood fibers.
• All NOVA Chuck accessory jaws are designed to hold in the expansion and contraction modes
• Same jaw fixing system across all Standard NOVA Chuck models (except Quick Change) – giving you maximum system interchangeability and flexibility.

FEATURES:

• Spigot Jaw Sets are heavy section jaws with a powerful grip for spigot (tenon) turning. With 30mm (1-1/8″) depth and a special serrated tooth form, these jaws really hang on to your workpiece.
• For work where a long overhang is needed or hollowing into end grain, these jaws provide superior gripping power.
• Specially designed to provide a strong contracting grip to unsupported spigot turning applications, such as vases and goblets.
• Can handle spigots up to 2”/50mm and down to 13/36” /30mm.
• Made from K1045 steel for maximum structural strength.
• The standard Woodworm Screw (included with NOVA chucks) can be used with these jaws.
• Only NOVA chucks give you the same jaw fixing system and same insert/adapter system across all standard chuck models, giving you optimal flexibility. All accessory jaws in the Standard Chuck range will fit all the Standard NOVA (NOVA Infinity Quick Change requires optional accessory Upgrade Kit or Retro Fit Kit to attach standard NOVA Accessories) Some jaws, however, are not recommended for use on all NOVA Chucks due to sizing. See manual for recommendations.
• NOVA chucks are specially designed so the jaws cut into the wood, grip firmly in the contraction mode and provide high tear out strength.

EXPANDING GRIP
51.8mm (2.04”) – 71.9mm (2.83”)

CONTRACTING GRIP
Square: 44.96mm (1.77”) – 24.9mm (.98”)
Spigot: 49.8mm (1.96“) – 40.9mm (1.61”)
Actual sizes may vary depending on which NOVA chuck is being used.

WEIGHT: 1.6 Lbs / 725 grams

WARRANTY: 6-Years Full Replacement
